KSP2222 Datasheet - Fairchild Semiconductor

KSP2222 General Purpose Transistor

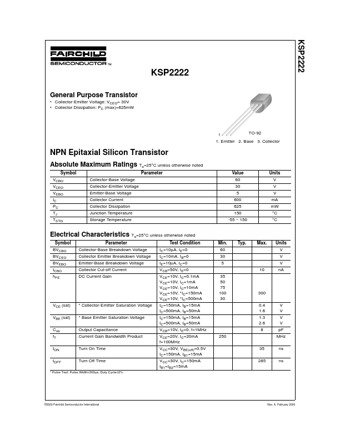

www.DataSheet4U.com KSP2222 KSP2222 General Purpose Transistor Collector-Emitter Voltage: VCEO= 30V Collector Dissipation: PC (max)=625mW 1 TO-92 1. Emitter 2. Base 3. Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissipation Junction Temperature Storage Temperature Value 60 3.

KSP2222_FairchildSemiconductor.pdf

Preview of KSP2222 PDF
KSP2222 Datasheet Preview Page 2 KSP2222 Datasheet Preview Page 3

Datasheet Details

Part number:

KSP2222

Manufacturer:

Fairchild Semiconductor

File Size:

63.32 KB

Description:

General purpose transistor.
