KSP25 Datasheet - Fairchild Semiconductor

KSP25 Darlington Transistor

KSP25/26/27 KSP25/26/27 Darlington Transistor Collector-Emitter Voltage: VCES=KSP25: 40V KSP26: 50V KSP27: 60V Collector Power Dissipation: PC (max) =625mW TO-92 1 1. Emitter 2. Base 3. Collector NPN Epitaxial Silicon Darlington Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCES Parameter Collector-Emitter Voltage : KSP25 : KSP26 : KSP27 VEBO IC PC TJ TSTG Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature S.

KSP25_FairchildSemiconductor.pdf

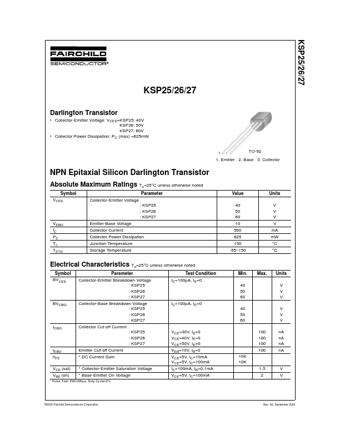

Preview of KSP25 PDF
KSP25 Datasheet Preview Page 2 KSP25 Datasheet Preview Page 3

Datasheet Details

Part number:

KSP25

Manufacturer:

Fairchild Semiconductor

File Size:

32.84 KB

Description:

Darlington transistor.
