KSP26 Datasheet (Fairchild Semiconductor)

KSP26, Darlington Transistor

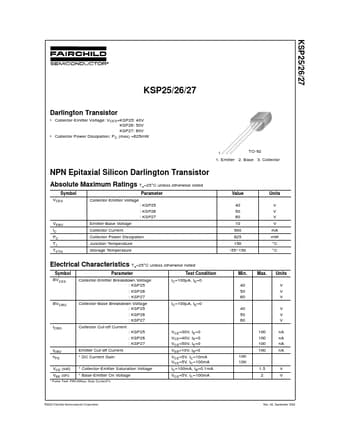

KSP25/26/27 KSP25/26/27 Darlington Transistor Collector-Emitter Voltage: VCES=KSP25: 40V KSP26: 50V KSP27: 60V Collector Power Dissipation: PC (max) =625mW TO-92 1 1.

Emitter 2.

Base 3.

Collector NPN Epitaxial Silicon Darlington Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCES Parameter Collector-Emitter Voltage : KSP25 : KSP26 : KSP27 VEBO IC PC TJ TSTG Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature S
