KSP43, KSP42 - NPN Epitaxial Silicon Transistor

onsemi

The KSP43 by onsemi is a NPN Epitaxial Silicon Transistor. Below is the official datasheet preview.

📥 Download Datasheet

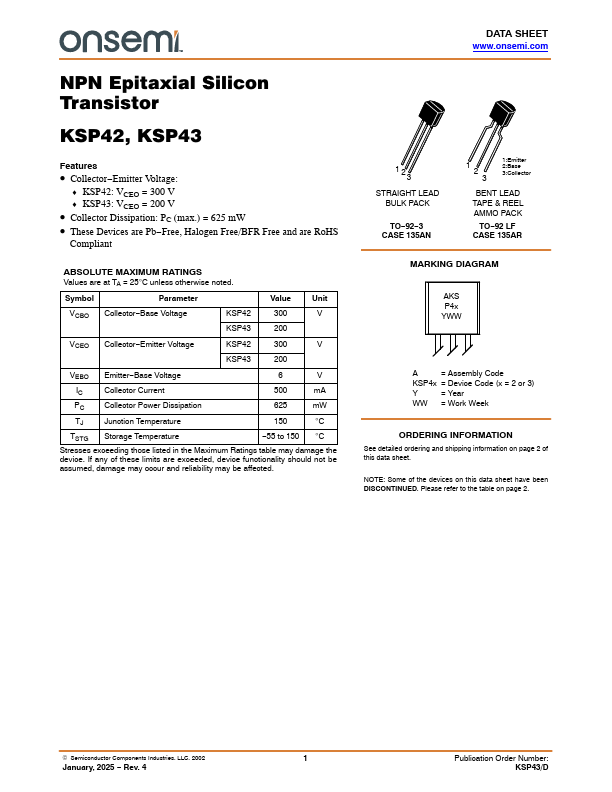

KSP43 NPN Epitaxial Silicon Transistor by onsemi - Datasheet Preview — Official preview page of the **KSP43** NPN Epitaxial Silicon Transistor datasheet (onsemi).

Datasheet Details

Part number	KSP43, KSP42
Manufacturer	onsemi
File Size	201.00 KB
Description	NPN Epitaxial Silicon Transistor
Datasheet	KSP42-onsemi.pdf
Note	This datasheet PDF includes multiple part numbers: KSP43, KSP42. Please refer to the document for exact specifications by model.

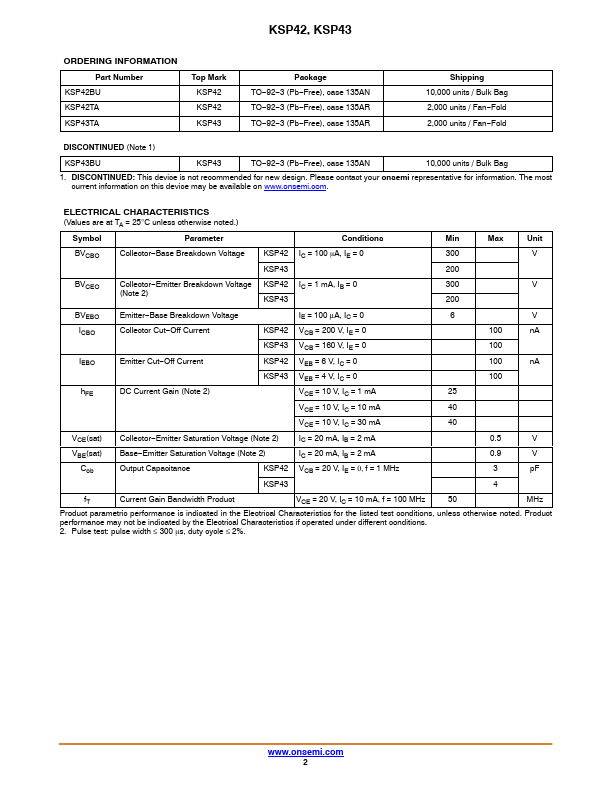

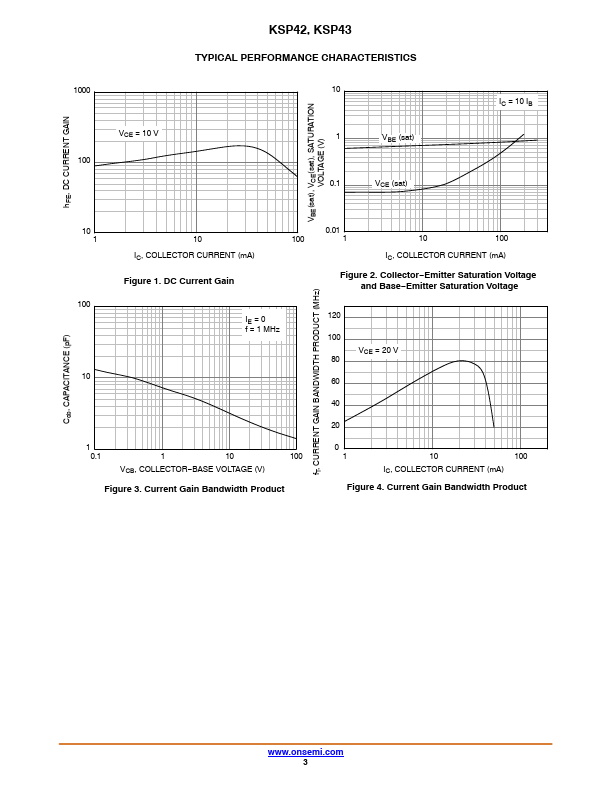

Additional preview pages of the KSP43 datasheet.

KSP43 Product details

Description

TO 92 3 4.825X4.76 Electronic versions are uncontrolled except when accessed directly from the Document Repository.Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.PAGE 1 OF 1 onsemi and are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries.onsemi reserves the right to make changes without further notice to any products herein.onsemi makes no warranty, representation or

Features

Collector.
Emitter Voltage:.
KSP42: VCEO = 300 V.
KSP43: VCEO = 200 V.
Collector Dissipation: PC (max. ) = 625 mW.
These Devices are Pb.
Free, Halogen Free/BFR Free and are RoHS Compliant.
