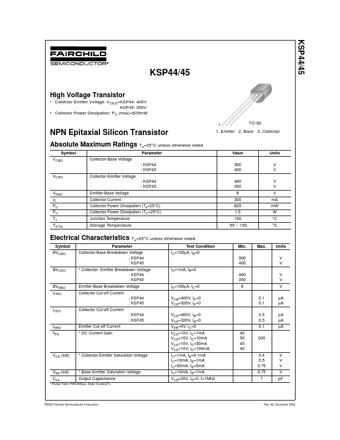

KSP44 High Voltage Transistor

KSP44/45 KSP44/45 High Voltage Transistor Collector-Emitter Voltage: VCEO=KSP44: 400V KSP45: 350V Collector Power Dissipation: PC (max)=625mW 1 TO-92 NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO Parameter Collector-Base Voltage : KSP44 : KSP45 VCEO Collector-Emitter Voltage : KSP44 : KSP45 VEBO IC PC PC TJ Emitter-Base Voltage Collector Current Collector Power Dissipation (Ta=25°C) Collector Power Dissipation (TC=25°C.
