KSP43 High Voltage Transistor

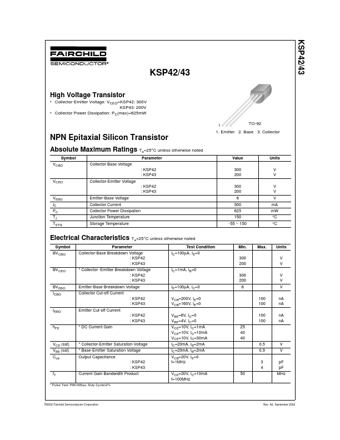

KSP42/43 KSP42/43 High Voltage Transistor Collector-Emitter Voltage: VCEO=KSP42: 300V KSP43: 200V Collector Power Dissipation: PC(max)=625mW 1 TO-92 1. Emitter 2. Base 3. Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO Parameter Collector Base Voltage : KSP42 : KSP43 VCEO Collector-Emitter Voltage : KSP42 : KSP43 VEBO IC PC TJ TSTG Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Tem.
