KSP13 Datasheet - Fairchild Semiconductor

KSP13 Darlington Transistor

KSP13/14 KSP13/14 Darlington Transistor Collector-Emitter Voltage: VCES=30V Collector Power Dissipation: PC (max)=625mW 1 TO-92 1. Emitter 2. Base 3. Collector NPN Epitaxial Silicon Darlington Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCES VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Value 30 30 .

KSP13_FairchildSemiconductor.pdf

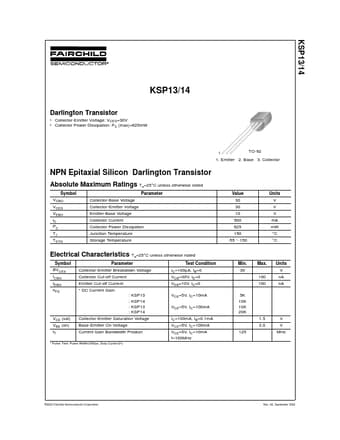

Preview of KSP13 PDF
KSP13 Datasheet Preview Page 2 KSP13 Datasheet Preview Page 3

Datasheet Details

Part number:

KSP13

Manufacturer:

Fairchild Semiconductor

File Size:

33.87 KB

Description:

Darlington transistor.
