LM336B-2.5 Datasheet, Regulator, Fairchild Semiconductor

LM336B-2.5 Features

  • Regulator
  • Low Temperature Coefficient
  • Guaranteed Temperature Stability 4mV Typical
  • 0.2Ω Dynamic Impedance
  • ±1.0% Initial Tolerance Available
  • Easil

PDF File Details

Part number:

LM336B-2.5

Manufacturer:

Fairchild Semiconductor

File Size:

60.83kb

Download:

📄 Datasheet

Description:

Programmable shunt regulator. The LM336-2.5/LM336B-2.5 integrated circuits are precision 2.5V shunt regulators. The monolithic IC voltage reference operates as a l

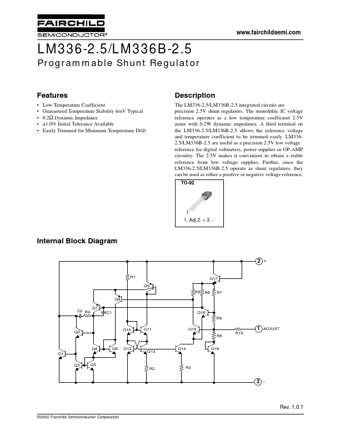

Datasheet Preview: LM336B-2.5 📥 Download PDF (60.83kb)
Page 2 of LM336B-2.5 Page 3 of LM336B-2.5
