LM336-5.0

5.0V Reference Diode

LM336-5.0 Features

* n Adjustable 4V to 6V n Low temperature coefficient n Wide operating current of 600 µA to 10 mA n 0.6Ω dynamic impedance n ± 1% initial tolerance available n Guaranteed temperature stability n Easily trimmed for minimum temperature drift n Fast turn-on n Three lead transistor package Connection Dia

LM336-5.0 General Description

The LM136-5.0/LM236-5.0/LM336-5.0 integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coef.

LM336-5.0 Datasheet (639.07 KB)

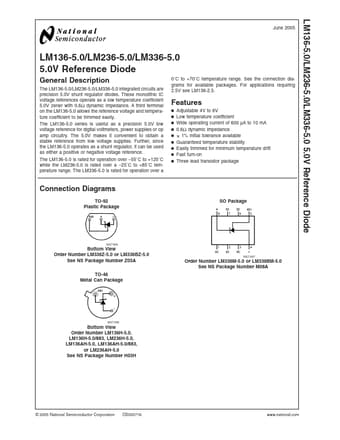

Preview of LM336-5.0 PDF

Datasheet Details

Part number:

LM336-5.0

Manufacturer:

National Semiconductor

File Size:

639.07 KB

Description:

5.0v reference diode.
