NM24C16U Datasheet - Fairchild Semiconductor

(NM24C16U / NM24C17U) 16K-Bit Serial EEPROM

NM24C16U Features

* I The I2C™ interface allows the smallest I/O pincount of any EEPROM interface I 16 byte page write mode to minimize total write time per byte I Typical 200µA active current (ICCA) I Typical 1µA standby current (ISB) for "L" devices and 0.1µA standby current for "LZ" devices I Endurance: Up to 1,000,

NM24C16U General Description

The NM24C16U/17U devices are 16K (16,384) bit serial interface CMOS EEPROMs (Electrically Erasable Programmable ReadOnly Memory). These devices fully conform to the Standard I2C™ 2-wire protocol which uses Clock (SCL) and Data I/O (SDA) pins to synchronously clock data between the "master" (for exam.

NM24C16U Datasheet (124.70 KB)

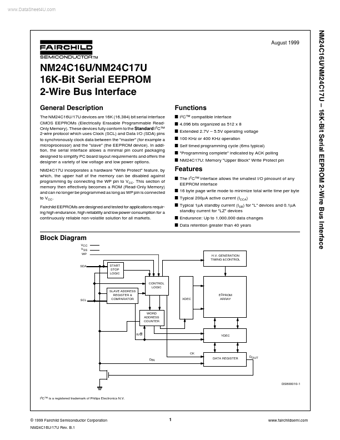

NM24C16U Datasheet Preview — Preview of NM24C16U PDF

Datasheet Details

Part number:

NM24C16U

Manufacturer:

Fairchild Semiconductor

File Size:

124.70 KB

Description:

(nm24c16u / nm24c17u) 16k-bit serial eeprom.
www.DataSheet4U.com NM24C16U/NM24C17U 16K-Bit Serial EEPROM 2-Wire Bus Interface August 1999 NM24C16U/NM24C17U 16K-Bit Serial EEPROM 2-Wi.
