NM24C02 Datasheet - Fairchild

2K-Bit Standard 2-Wire Bus

NM24C02 Features

* I Extended operating voltage 2.7V

* 5.5V I 400 KHz clock frequency (F) at 2.7V - 5.5V I 200µA active current typical 10µA standby current typical 1µA standby current typical (L) 0.1µA standby current typical (LZ) I IIC compatible interface

* Provides bi-directional data transfer prot

NM24C02 General Description

The NM24C02/03 devices are 2048 bits of CMOS non-volatile electrically erasable memory. These devices conform to all specifications in the Standard IIC 2-wire protocol and are designed to minimize device pin count, and simplify PC board layout requirements. The upper half (upper 1Kbit) of the memory.

NM24C02 Datasheet (104.54 KB)

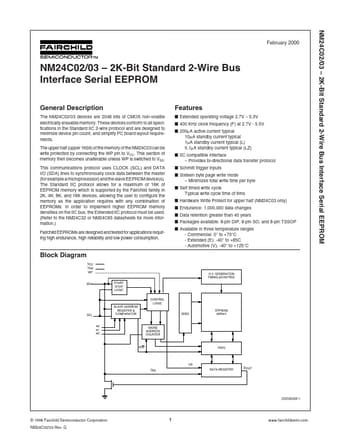

NM24C02 Datasheet Preview — Preview of NM24C02 PDF

Datasheet Details

Part number:

NM24C02

Manufacturer:

Fairchild

File Size:

104.54 KB

Description:

2k-bit standard 2-wire bus.
NM24C02/03 2K-Bit Standard 2-Wire Bus Interface Serial EEPROM February 2000 NM24C02/03 2K-Bit Standard 2-Wire Bus Interface Seri.
