NM24C65 Datasheet - Fairchild

64K-Bit Extended 2-Wire Bus Interface Serial EEPROM with Write Protect

NM24C65 Features

* s Extended operating voltage 2.7V

* 5.5V s 400 KHz clock frequency (F) at 2.7V - 5.5V s 200µA active current typical 10µA standby current typical 1µA standby typical (L) 0.1µA standby typical (LZ) s IIC compatible interface

* Provides bidirectional data transfer protocol s 32 byte p

NM24C65 General Description

The NM24C65 devices are 65,536 bits of CMOS nonvolatile electrically erasable memory. These devices offer the designer different low voltage and low power options, and they conform to all in the Extended IIC 2-wire protocol. Furthermore, they are designed to minimize device pin count and simplify P.

NM24C65 Datasheet (86.26 KB)

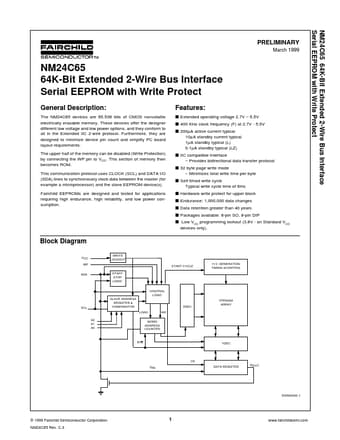

NM24C65 Datasheet Preview — Preview of NM24C65 PDF

Datasheet Details

Part number:

NM24C65

Manufacturer:

Fairchild

File Size:

86.26 KB

Description:

64k-bit extended 2-wire bus interface serial eeprom with write protect.
NM24C65 64K-Bit Extended 2-Wire Bus Interface Serial EEPROM with Write Protect PRELIMINARY March 1999 NM24C65 64K-Bit Extended 2-Wire Bus Interface .
