NM24C16 Datasheet, Eeprom, Fairchild

NM24C16 Features

• Eeprom I Extended operating voltage 2.7V
    – 5.5V I 400 KHz clock frequency (F) at 2.7V - 5.5V I 200µA active current typical 10µA standby current typical 1µA standby current typ

PDF File Details

Part number:

NM24C16

Manufacturer:

Fairchild

File Size:

102.73kb

Download:

📄 Datasheet

Description:

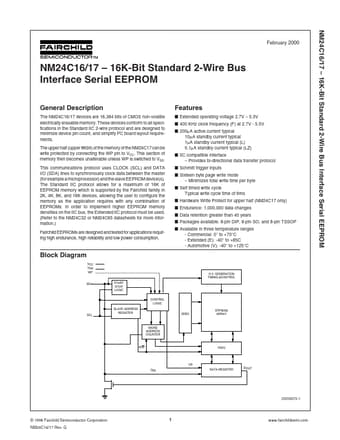

16k-bit standard 2-wire bus interface serial eeprom. The NM24C16/17 devices are 16,384 bits of CMOS non-volatile electrically erasable memory. These devices conform to all specifications

NM24C16 Application

• Applications requiring high endurance, high reliability and low power consumption. Features I Extended operating voltage 2.7V
    – 5.5
