NM24C03

Serial EEPROM

NM24C03 General Description

The NM24C03 C05 C09 C17 devices are 2048 4096 8192 16 834 bits respectively of CMOS non-volatile electrically erasable memory These devices conform to all specifications in the I2C 2-wire protocol and are designed to minimize device pin count and simplify PC board layout requirements The upper half .

NM24C03 Datasheet (162.73 KB)

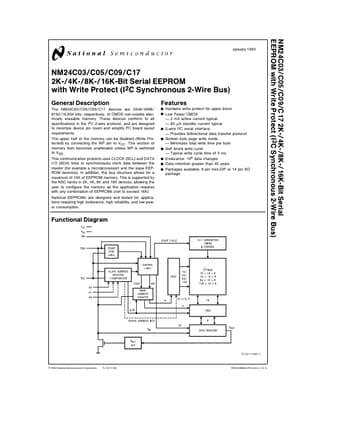

Preview of NM24C03 PDF

Datasheet Details

Part number:

NM24C03

Manufacturer:

National Semiconductor

File Size:

162.73 KB

Description:

Serial eeprom.
NM24C03 C05 C09 C17 2K- 4K- 8K- 16K-Bit Serial EEPROM with Write Protect (I2C Synchronous 2-Wire Bus) January 1993 NM24C03 C05 C09 C17 2K- 4K- 8K- 1.
