NM24W02 Datasheet - Fairchild

NM24W02 2K/4K/8K/16K-Bit Standard 2-Wire Bus Interface Serial EEPROM with Full Array Write Protect

The NM24Wxx devices are 2048/4096/8192/16,384 bits, respectively, of CMOS non-volatile electrically erasable memory. These devices conform to all specifications in the IIC 2-wire protocol and are designed to minimize device pin count, and simplify PC board layout requirements. The entire ememory can.

NM24W02 Features

* s Hardware Write Protect for entire memory s Low Power CMOS 200µA active current typical 10µA standby current typical 1µA standby typical (L) 0.1µA standby typical (LZ) s IIC Compatible interface

* Provides bidirectional data transfer protocol s Sixteen byte page write mode

* Minimiz

NM24W02_FairchildSemiconductor.pdf

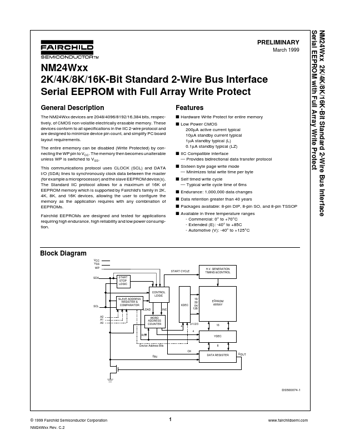

NM24W02 Datasheet Preview — Preview of NM24W02 PDF

Datasheet Details

Part number:

NM24W02

Manufacturer:

Fairchild

File Size:

104.71 KB

Description:

2k/4k/8k/16k-bit standard 2-wire bus interface serial eeprom with full array write protect.
