NM24W16 2K/4K/8K/16K-Bit Standard 2-Wire Bus Interface Serial EEPROM with Full Array Write Protect

NM24W16 Description

NM24Wxx 2K/4K/8K/16K-Bit Standard 2-Wire Bus Interface Serial EEPROM with Full Array Write Protect PRELIMINARY March 1999 NM24Wxx 2K/4K/8K/16K-Bit S.
The NM24Wxx devices are 2048/4096/8192/16,384 bits, respectively, of CMOS non-volatile electrically erasable memory.

NM24W16 Features

* s Hardware Write Protect for entire memory s Low Power CMOS 200µA active current typical 10µA standby current typical 1µA standby typical (L) 0.1µA standby typical (LZ) s IIC Compatible interface
* Provides bidirectional data transfer protocol s Sixteen byte page write mode
* Minimiz

📥 Download Datasheet

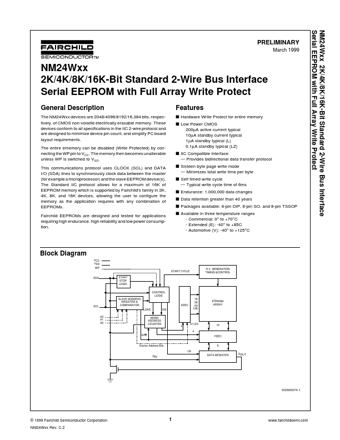

Preview of NM24W16 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NM24W16
Manufacturer
Fairchild
File Size
104.71 KB
Datasheet
NM24W16_FairchildSemiconductor.pdf
Description
2K/4K/8K/16K-Bit Standard 2-Wire Bus Interface Serial EEPROM with Full Array Write Protect
