NM24W04 - 2K/4K/8K/16K-Bit Standard 2-Wire Bus Interface Serial EEPROM with Full Array Write Protect

Fairchild

The NM24W04 by Fairchild is a 2K/4K/8K/16K-Bit Standard 2-Wire Bus Interface Serial EEPROM with Full Array Write Protect. Below is the official datasheet preview.

📥 Download Datasheet

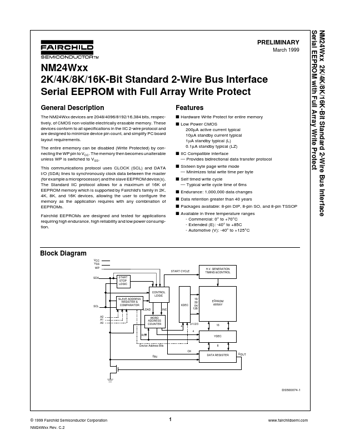

NM24W04 2K/4K/8K/16K-Bit Standard 2-Wire Bus Interface Serial EEPROM with Full Array Write Protect by Fairchild - Datasheet Preview — Official preview page of the **NM24W04** 2K/4K/8K/16K-Bit Standard 2-Wire Bus Interface Serial EEPROM with Full Array Write Protect datasheet (Fairchild).

Datasheet Details

Part number	NM24W04
Manufacturer	Fairchild
File Size	104.71 KB
Description	2K/4K/8K/16K-Bit Standard 2-Wire Bus Interface Serial EEPROM with Full Array Write Protect
Datasheet	NM24W04_FairchildSemiconductor.pdf
Additional preview pages of the NM24W04 datasheet.

NM24W04 Product details

Description

The NM24Wxx devices are 2048/4096/8192/16,384 bits, respectively, of CMOS non-volatile electrically erasable memory.

Features

s Hardware Write Protect for entire memory s Low Power CMOS 200µA active current typical 10µA standby current typical 1µA standby typical (L) 0.1µA standby typical (LZ) s IIC Compatible interface.
Provides bidirectional data transfer protocol s Sixteen byte page write mode.
Minimizes total write time per byte s Self timed write cycle.
Typical write cycle time of 6ms s Endurance: 1,000,000 data changes s Data retention greater than 40 years s Packages available: 8-pin D.
