PF5102 Datasheet - Fairchild Semiconductor

PF5102 N-Channel Switch

PF5102 PF5102 N-Channel Switch This device is designed for low level analog switching, sample and hold circuits and chopper stabized amplifiers. Sourced from process 51. See J111 for characteristics. TO-92 1 1. Drain 2. Source 3. Gate Absolute Maximum Ratings TA=25°C unless otherwise noted Symbol VDG VGS IGF TJ, TSTG Parameter Drain-Gate Voltage Gate-Source Voltage Forward Gate Current Operating and Storage Junction Temperature Range Value 40 -40 50 -55 ~ .

PF5102_FairchildSemiconductor.pdf

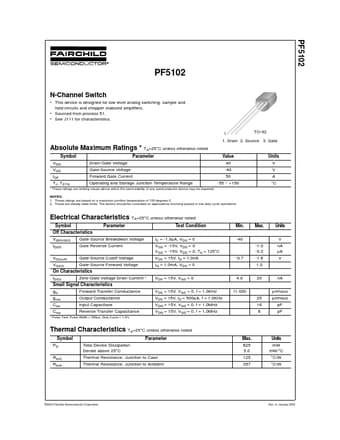

Preview of PF5102 PDF
PF5102 Datasheet Preview Page 2 PF5102 Datasheet Preview Page 3

Datasheet Details

Part number:

PF5102

Manufacturer:

Fairchild Semiconductor

File Size:

26.05 KB

Description:

N-channel switch.
