PF5005 - PRESS-FIT DIODE

Product Overview

WON-TOP

📥 Download Datasheet

PF5005 PRESS-FIT DIODE by WON-TOP - Datasheet Preview — Datasheet preview – PF5005

Datasheet Details

Part number	PF5005
Manufacturer	WON-TOP
File Size	27.89 KB
Description	PRESS-FIT DIODE
Datasheet	PF5005 Datasheet
Note	This datasheet PDF includes multiple part numbers: PF5005, PF5000-WON. Please refer to the document for exact specifications by model.

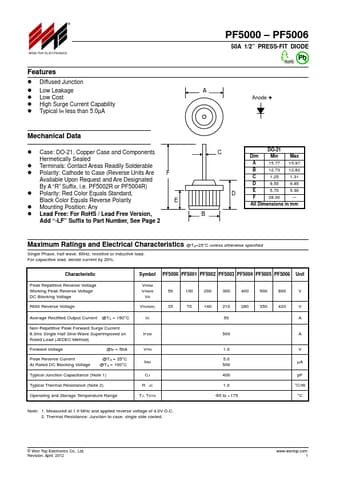

Additional preview pages of the PF5005 datasheet.

Product details

Features

Diffused Junction.
Low Leakage.
Low Cost.
High Surge Current Capability.
Typical IR less than 5.0µA PF5000.
PF5006 50A 1/2” PRESS-FIT DIODE Pb A Anode + Mechanical Data.
Case: DO-21, Copper Case and Components Hermetically Sealed.
Terminals: Contact Areas Readily Solderable.
Polarity: Cathode to Case (Reverse Units Are F Available Upon Request and Are Designated By A “R” Suffix, i. e. PF5002R or PF5004R).
Polarity: Red Color Equals Sta.
