PF5101 - N-Channel JFET

PF5101 Description

Process 51 NF5101-03/PF5101-03 N-Channel JFETs General .
The NF5101-3 (TO-72) and PF5101-3 (TO-92) are N-channel silicon Junction Field-Effect Transistors designed for ultra-low noise preamplifier applicatio.

PF5101 Applications

* particularly hydrophones, particle detectors, high quality mic/phono/tape, video, vidicon and l-R sensor preampli- fiers. Absolute Maximum Ratings Drain-Gate Voltage Reverse Gate-Source Voltage Forward Gate Current Device Dissipation @ 25°C Derate Above 25°C Operating Temperature Range Lead Tempe

📥 Download Datasheet

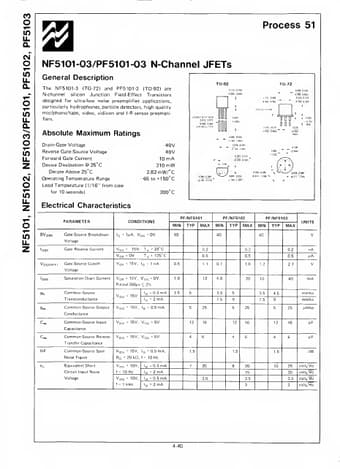

Preview of PF5101 PDF
