PF5002, PF5000-WON Datasheet - WON-TOP

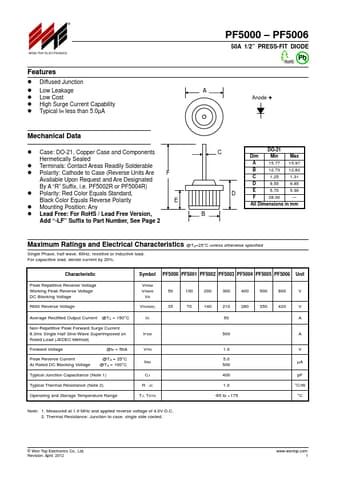

PF5002, PF5000-WON, PRESS-FIT DIODE

® WON-TOP ELECTRONICS .

datasheet Preview Page 1 from Datasheet4u.com

PF5000-WON-TOP.pdf

PF5002 Datasheet Preview — This datasheet PDF includes multiple part numbers: PF5002, PF5000-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PF5002, PF5000-WON

Manufacturer:

WON-TOP

File Size:

27.89 KB

Description:

PRESS-FIT DIODE

Note:

This datasheet PDF includes multiple part numbers: PF5002, PF5000-WON.
Please refer to the document for exact specifications by model.

Features

* Diffused Junction
* Low Leakage
* Low Cost
* High Surge Current Capability
* Typical IR less than 5.0µA PF5000
* PF5006 50A 1/2” PRESS-FIT DIODE Pb A Anode + Mechanical Data
* Case: DO-21, Copper Case and Components Hermetically Sealed
* Terminals: Contact A
