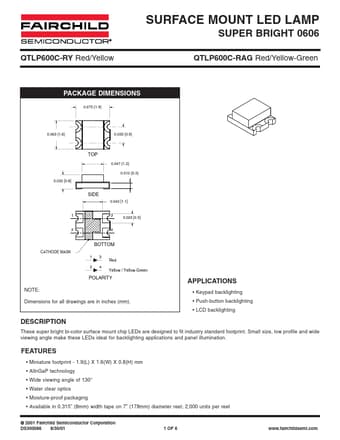

QTLP600C-RAG Datasheet, 0606, Fairchild Semiconductor

QTLP600C-RAG Features

• 0606
• Miniature footprint - 1.9(L) X 1.6(W) X 0.8(H) mm
• AllnGaP technology
• Wide viewing angle of 130°
• Water clear optics
• Moisture-proof packa

PDF File Details

Part number:

QTLP600C-RAG

Manufacturer:

Fairchild Semiconductor

File Size:

169.99kb

Download:

📄 Datasheet

Description:

Surface mount led lamp super bright 0606. These super bright bi-color surface mount chip LEDs are designed to fit industry standard footprint. Small size, low profile and wide

QTLP600C-RAG Application

• Applications
• Keypad backlighting
• Push-button backlighting
• LCD backlighting NOTE: Dimensions for all drawings are in i
