QTLP600C-RY Datasheet, 0606, Fairchild Semiconductor

QTLP600C-RY Features

  • 0606
  • Miniature footprint - 1.9(L) X 1.6(W) X 0.8(H) mm
  • AllnGaP technology
  • Wide viewing angle of 130°
  • Water clear optics
  • Moisture-proof packa

PDF File Details

Part number:

QTLP600C-RY

Manufacturer:

Fairchild Semiconductor

File Size:

169.99kb

Download:

📄 Datasheet

Description:

Surface mount led lamp super bright 0606. These super bright bi-color surface mount chip LEDs are designed to fit industry standard footprint. Small size, low profile and wide

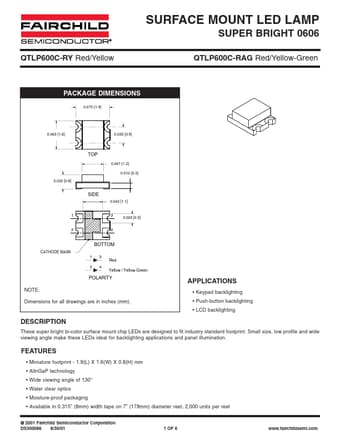

Datasheet Preview: QTLP600C-RY 📥 Download PDF (169.99kb)
Page 2 of QTLP600C-RY Page 3 of QTLP600C-RY

QTLP600C-RY Application

  • Applications
  • Keypad backlighting
  • Push-button backlighting
  • LCD backlighting NOTE: Dimensions for all drawings are in i
