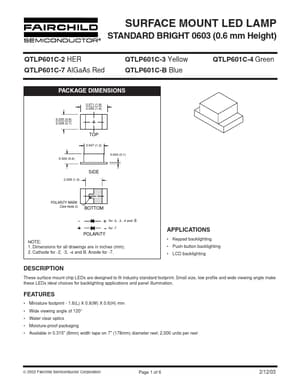

QTLP601C Datasheet, Height), Fairchild Semiconductor

QTLP601C Features

• Height)
• Miniature footprint - 1.6(L) X 0.8(W) X 0.6(H) mm
• Wide viewing angle of 120°
• Water clear optics
• Moisture-proof packaging
• Available in 0

PDF File Details

Part number:

QTLP601C

Manufacturer:

Fairchild Semiconductor

File Size:

362.52kb

Download:

📄 Datasheet

Description:

Surface mount led lamp standard bright 0603 (0.6 mm height). These surface mount chip LEDs are designed to fit industry standard footprint. Small size, low profile and wide viewing angle make thes

QTLP601C Application

• Applications
• Keypad backlighting
• Push-button backlighting
• LCD backlighting NOTE: 1. Dimensions for all drawings are i
