QTLP601C-O - SURFACE MOUNT LED LAMP

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

QTLP601C-O SURFACE MOUNT LED LAMP by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – QTLP601C-O

Datasheet Details

Part number	QTLP601C-O
Manufacturer	Fairchild Semiconductor
File Size	137.75 KB
Description	SURFACE MOUNT LED LAMP
Datasheet	QTLP601C-O Datasheet

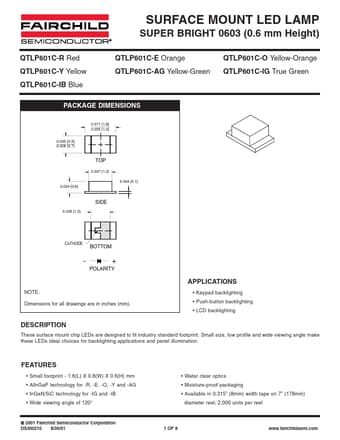

Additional preview pages of the QTLP601C-O datasheet.

Product details

Description

These surface mount chip LEDs are designed to fit industry standard footprint.

Features

Small footprint - 1.6(L) X 0.8(W) X 0.6(H) mm.
AllnGaP technology for -R, -E, -O, -Y and -AG.
InGaN/SiC technology for -IG and -IB.
Wide viewing angle of 120°.
Water clear optics.
Moisture-proof packaging.
Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel  2001 Fairchild Semiconductor Corporation DS300210 8/30/01 1 OF 8 www. fairchildsemi. com.
