SS14

Schottky Rectifier

SS14 Features

* Glass-Passivated Junctions

* High-Current Capability, Low VF Applications

* Low Voltage

* High-Frequency Inverters

* Free Wheeling

* Polarity Protection January 2015 Description The SS12-S100 series includes high-efficiency, low power loss, general-

SS14 General Description

The SS12-S100 series includes high-efficiency, low power loss, general-propose schottky rectifiers. The clip -bonded leg structure provides high thermal performance and low electrical resistance. These rectifiers are suited for free wheeling, secondary rectification, and reverse polarity protection .

SS14 Datasheet (133.21 KB)

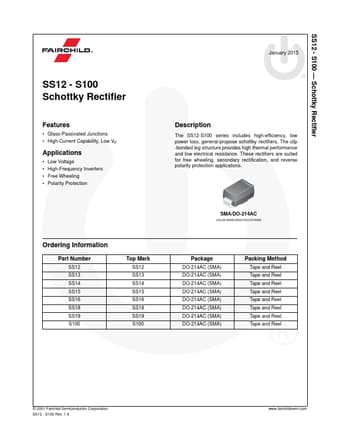

Preview of SS14 PDF

Datasheet Details

Part number:

SS14

Manufacturer:

Fairchild Semiconductor

File Size:

133.21 KB

Description:

Schottky rectifier.
