TIL113 PHOTODARLINGTON OPTOCOUPLERS

TIL113 Description

PHOTODARLINGTON OPTOCOUPLERS .
The CNX48U, H11BX, MOC8080 and TIL113 have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.

TIL113 Features

* High sensitivity to low input drive current
* Meets or exceeds all JEDEC Registered Specifications

TIL113 Applications

* Low power logic circuits 6 Telecommunications equipment Portable electronics Solid state relays Interfacing coupling systems of different potentials and impedances. CATHODE 2 5 COLLECTOR 1 N/C 3 4 EMITTER Parameter TOTAL DEVICE Storage Temperatur

📥 Download Datasheet

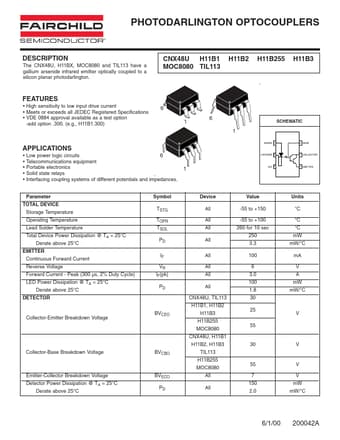

Preview of TIL113 PDF
