TIL111X Datasheet, Hototransistor, ISOCOM COMPONENTS

TIL111X Features

• Hototransistor l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) APPLICATIONS

PDF File Details

Part number:

TIL111X

Manufacturer:

ISOCOM COMPONENTS

File Size:

77.79kb

Download:

📄 Datasheet

Description:

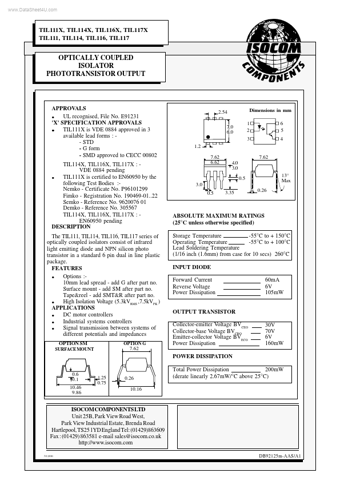

Optically coupled isolator hototransistor. The TIL111, TIL114, TIL116, TIL117 series of optically coupled isolators consist of infrared light emitting diode and NPN silicon pho

TIL111X Application

• Applications l DC motor controllers l Industrial systems controllers l Signal transmission between systems of different potentials and impedances OP
