TIL113M - General Purpose 6-Pin Photodarlington Optocoupler

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	TIL113M
Manufacturer	Fairchild Semiconductor
File Size	304.53 KB
Description	General Purpose 6-Pin Photodarlington Optocoupler
Datasheet	TIL113M Datasheet

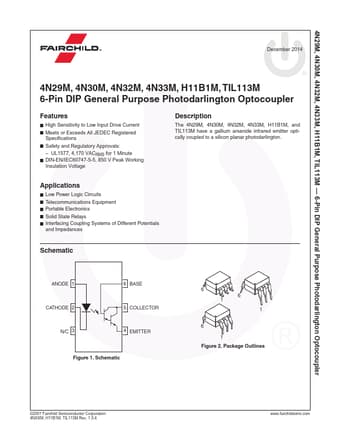

Additional preview pages of the TIL113M datasheet.

Product details

Description

The 4N29M, 4N30M, 4N32M, 4N33M, H11B1M, and TIL113M have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington. Low Power Logic Circuits Telecommunications Equipment Portable Electronics Solid State Relays Interfacing Coupling Systems of Different Potentials and Impedances Schematic ANODE 1 CATHODE 2 N/C 3 6 BASE 5 COLLECTOR 4 EMITTER Figure 1. Schematic 6 6 1 1 6 1 Figure 2. Package Outlines ©2007 Fairchild Se

Features

High Sensitivity to Low Input Drive Current.
Meets or Exceeds All JEDEC Registered Speciﬁcations.
Safety and Regulatory Approvals:.
UL1577, 4,170 VACRMS for 1 Minute.
DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage.
