2SD5072 Datasheet - Fairchild

2SD5072 NPN TRIPLE DIFFUSED PLANAR SILICON TRANSISTOR

KSD5072 NPN TRIPLE DIFFUSED PLANAR SILICON TRANSISTOR COLOR TV HORIZONTAL OUTPUT APPLICATION (DAMPER DIODE BUILT IN) High Collector-Base Voltage (VCBO=1500V) High Switching Speed (tF. max=0.4µs) TO-3PF ABSOLUTE MIXIMUM RATING Characteristic Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Collector Current (Peak) Symbol VCBO VCEO VEBO IC IC PC TJ T STG Rating 1500 800 6 5 16 60 150 -55 ~ 150 Unit V V V A A W °C °C 1.Base 2.Collector .

2SD5072_Fairchild.pdf

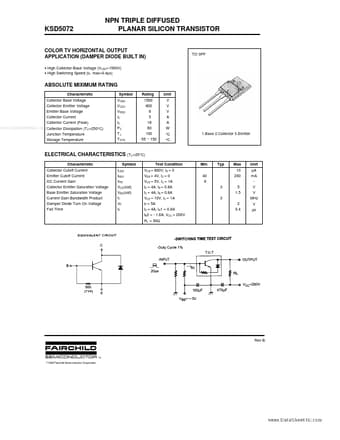

Preview of 2SD5072 PDF
2SD5072 Datasheet Preview Page 2 2SD5072 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD5072

Manufacturer:

Fairchild

File Size:

122.37 KB

Description:

Npn triple diffused planar silicon transistor.
