2SD504

NPN Transistor

2SD504 General Description


*High DC current gain- hFE = 750 (Min) @ IC = 6A
*Collector-Emitter Sustaining Voltage- VCEO(SUS)= 60V(Min)
*Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS
*Designed for general purpose amplifier and low frequency switching applicatio.

2SD504 Datasheet (179.61 KB)

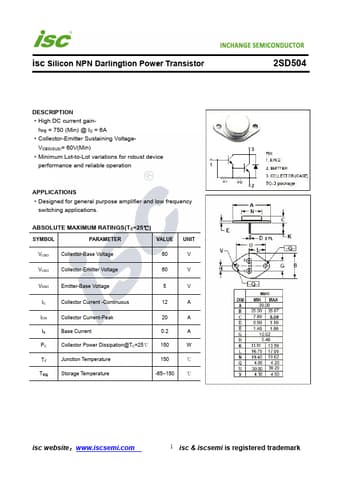

Preview of 2SD504 PDF

Datasheet Details

Part number:

2SD504

Manufacturer:

INCHANGE

File Size:

179.61 KB

Description:

Npn transistor.
