Part number: KA350
Manufacturer: Fairchild
File Size: 121.75KB
Download: 📄 Datasheet
Description: 3-Terminal 3A Positive Adjustable Voltage Regulator
*
*
*
*
*
*
* Output adjustable between 1.2V and 33V Guaranteed 3A output current Internal thermal over load protection Load regulation (Typ: .
5
KA350
Mechanical Dimensions (Continued)
Package
TO-220
9.90 ±0.20 1.30 ±0.10 2.80 ±0.10 (8.70) ø3.60 ±0.10 (1.70).

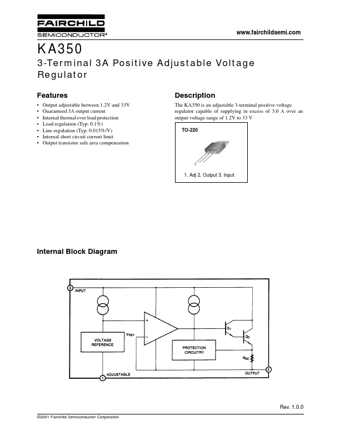

The KA350 is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 3.0 A over an output voltage range of 1.2V to 33 V
TO-220
1
1. Adj 2. Output 3. Input
Internal Block Diagram
Rev. 1.0.0
©2001 Fairchild Semiconduct.
