KA3525A datasheet, controller equivalent, Fairchild

KA3525A Features and benefits

* 5V ±1% Reference
* Oscillator Sync Terminal
* Internal Soft Start
* Deadtime Control
* Under Voltage Lockout Description The KA3525A is a monolithi.

KA3525A Description

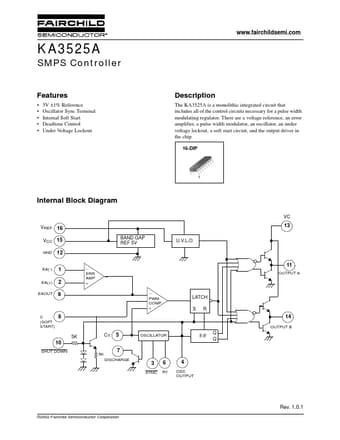

The KA3525A is a monolithic integrated circuit that includes all of the control circuits necessary for a pulse width modulating regulator. There are a voltage reference, an error amplifier, a pulse width modulator, an oscillator, an under voltage loc.

Image gallery
