KA3511D - Intelligent Voltage Mode PWM IC

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	KA3511D
Manufacturer	Fairchild Semiconductor
File Size	515.84 KB
Description	Intelligent Voltage Mode PWM IC
Datasheet	KA3511D Datasheet

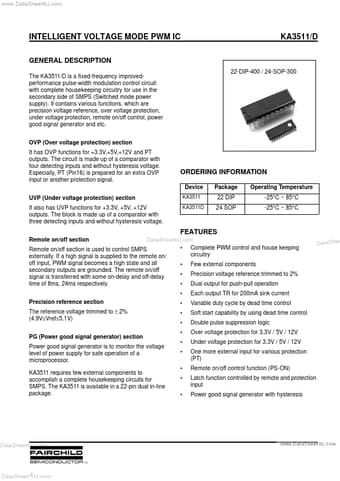

Additional preview pages of the KA3511D datasheet.

Product details

Description

The KA3511/D is a fixed-frequency improvedperformance pulse-width modulation control circuit with complete housekeeping circuitry for use in the secondary side of SMPS (Switched mode power supply).

Features

DataSheet4U. com.
Complete PWM control and house keeping Remote on/off section is used to control SMPS circuitry externally. If a high signal is supplied to the remote on/ off input, PWM signal becomes a high state and all.
Few external components secondary outputs are grounded. The remote on/off.
Precision voltage reference trimmed to 2% signal is transferred with some on-delay and off-delay time of 8ms, 24ms respectively.
Dual output for push-pull operation.
