KA3511DS - Intelligent Voltage Mode PWM IC

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	KA3511DS
Manufacturer	Fairchild Semiconductor
File Size	401.90 KB
Description	Intelligent Voltage Mode PWM IC
Datasheet	KA3511DS Datasheet

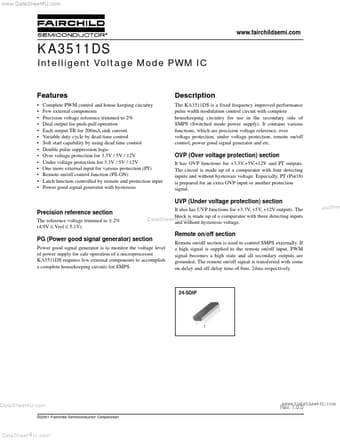

Additional preview pages of the KA3511DS datasheet.

Product details

Description

The KA3511DS is a fixed frequency improved performance pulse width modulation control circuit with complete housekeeping circuitry for use in the secondary side of SMPS (Switched mode power supply).

Features

Complete PWM control and house keeping circuitry Few external components Precision voltage reference trimmed to 2% Dual output for push-pull operation Each output TR for 200mA sink current Variable duty cycle by dead time control Soft start capability by using dead time control Double pulse suppression logic Over voltage protection for 3.3V / 5V / 12V Under.
