KA723 - Precision Voltage Regulator

KA723 Description

www.fairchildsemi.com KA723 Precision Voltage Regulator .
The KA723 are monolithic integrated Circuit voltage regulators featuring high ripple rejection, excellent output and load regulation, excellent temper.

KA723 Applications

* such as a shunt regulator, a current regulator or a temperature controller. 14-DIP 1 14-SOP 1 Internal Block Diagram INVERT INPUT 4 FREQUENCY COMPENS 12 11 +Vcc 12 TEMP. COMPENS ZENER Vo REF AMP ERROR AMP SERIES PASS TRANSISTOR Vo VREF 6 -Vcc 7 5 NON INVERT INPUT 5 3 9 Vz CURRENT

📥 Download Datasheet

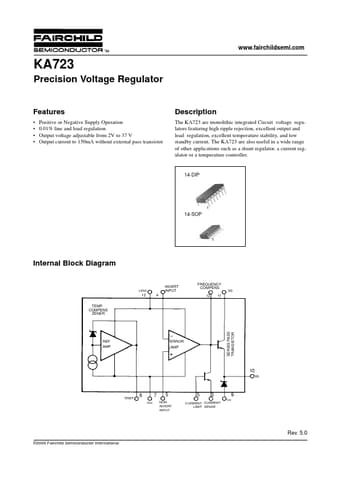

Preview of KA723 PDF
