KA7302D

GENERAL DISCRIPTION

KA7302D Features

* CDS ( Correlated Double Sampling )

* AGC ( Automatic Gain Control )

* Gamma Compensation

* +5V Single Power Supply

* Low Power < 400 mW

* Dual Power Down Mode - AGC Part stand by mode ( AGC OUT : GND )

* Maxmum Operational Frequency > 20 MHz

KA7302D General Description

No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Symbol XSHD XSHP DATA IN PG IN AGND1 AGC CONT CDS GC1 C γ CONT TRAP1 TRAP2 γ GC3 AGC GC2 DLY1 DLY2 Y γ CONT AGC OUT AGND2 VCC γ CAP SOB SO CDS OUT γ OUT AGC CAP CDS CAP DGND REFV CLP4 PBLK CLP1 I/O I I I I I I I O I .

KA7302D Datasheet (140.40 KB)

Preview of KA7302D PDF

Datasheet Details

Part number:

KA7302D

Manufacturer:

Samsung

File Size:

140.40 KB

Description:

General discription.

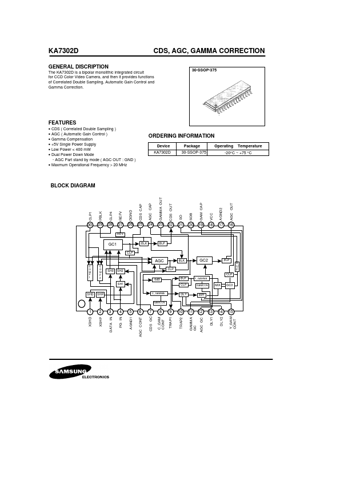

KA7302D GENERAL DISCRIPTION CDS, AGC, GAMMA CORRECTION 30-SSOP-375 The KA7302D is a bipolar monolithic integrated circuit for CCD Color Video Camera.
