KA7305

B/W CCD PROCESSOR

KA7305 Features

* 5 Steps sample & hold.

* 4 dB ~ 32 dB AGC gain control.

* Built in 2 comparators for EE mode control.

* EE mode WND / BLK selectable.

* Gamma γ = 0.45 / Linear output separation.

* Built in OP-AMP for AGC loop.

* 3 Mode set-up control.

* 2 Mode white / clip control.

KA7305 General Description

The KA7305 is a monolithic integrated circuit for B/W CCD camera 1 chip signal processor. It contains functional block from CDS to video driver and 2 comparators for EE mode. Also, it performs a low power onsumption and a small dimension of set implementation by decreasing external parts as a 1 chip.

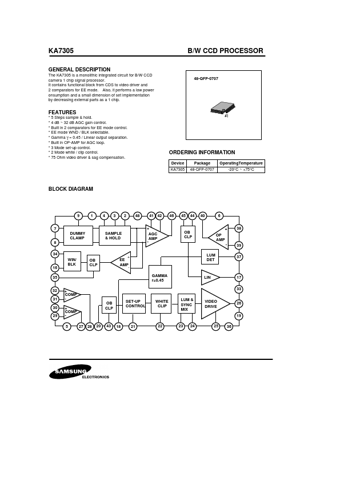

KA7305 Datasheet (123.35 KB)
