MM74HC164

8-Bit Serial-in/Parallel-out Shift Register

MM74HC164 Features

* s Typical operating frequency: 50 MHz s Typical propagation delay: 19 ns (clock to Q) s Wide operating supply voltage range: 2

* 6V s Low input current: 1 µA maximum s Low quiescent supply current: 80 µA maximum (74HC Series) s Fanout of 10 LS-TTL loads Ordering Code: Order Number MM74HC164M

MM74HC164 General Description

The MM74HC164 utilizes advanced silicon-gate CMOS technology. It has the high noise immunity and low consumption of standard CMOS integrated circuits. It also offers speeds comparable to low power Schottky devices. This 8-Bit shift register has gated serial inputs and CLEAR. Each register bit is a D.

MM74HC164 Datasheet (335.46 KB)

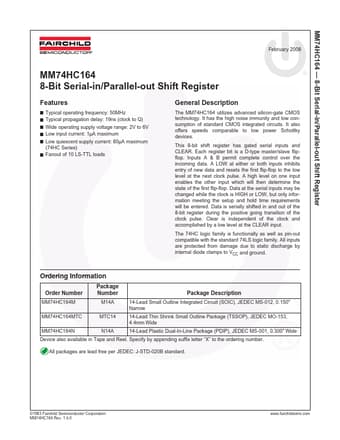

Preview of MM74HC164 PDF

Datasheet Details

Part number:

MM74HC164

Manufacturer:

Fairchild

File Size:

335.46 KB

Description:

8-bit serial-in/parallel-out shift register.
MM74HC164 8-Bit Serial-in/Parallel-out Shift Register September 1983 Revised February 1999 MM74HC164 8-Bit Serial-in/Parallel-out Shift Register Gen.
