MM74HC165 Datasheet - Fairchild

Parallel-in/Serial-out 8-Bit Shift Register

MM74HC165 Features

* s Typical propagation delay: 20 ns (clock to Q) s Wide operating supply voltage range: 2

* 6V s Low input current: 1 µA maximum s Low quiescent supply current: 80 µA maximum (74HC Series) s Fanout of 10 LS-TTL loads Ordering Code: Order Number MM74HC165M MM74HC165SJ MM74HC165MTC MM74HC165 Pac

MM74HC165 General Description

The MM74HC165 high speed PARALLEL-IN/SERIAL-OUT SHIFT REGISTER utilizes advanced silicon-gate CMOS technology. It has the low power consumption and high noise immunity of standard CMOS integrated circuits, along with the ability to drive 10 LS-TTL loads. This 8-bit serial shift register shifts data .

MM74HC165 Datasheet (79.08 KB)

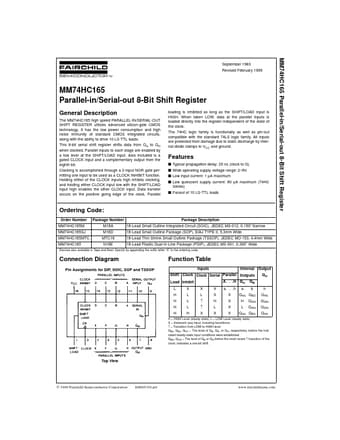

Preview of MM74HC165 PDF

Datasheet Details

Part number:

MM74HC165

Manufacturer:

Fairchild

File Size:

79.08 KB

Description:

Parallel-in/serial-out 8-bit shift register.
MM74HC165 Parallel-in/Serial-out 8-Bit Shift Register September 1983 Revised February 1999 MM74HC165 Parallel-in/Serial-out 8-Bit Shift Register Gen.
