MM74HC4020 14-Stage Binary Counter 12-Stage Binary Counter

MM74HC4020 Description

MM74HC4020 * MM74HC4040 14-Stage Binary Counter * 12-Stage Binary Counter February 1984 Revised February 1999 MM74HC4020 * M.
The MM74HC4020, MM74HC4040, are high speed binary ripple carry counters.

MM74HC4020 Features

* s Typical propagation delay: 16 ns s Wide operating voltage range: 2
* 6V s Low input current: 1 µA maximum s Low quiescent current: 80 µA maximum (74HC Series) s Output drive capability: 10 LS-TTL loads Ordering Code: Order Number MM74HC4020M MM74HC4020SJ MM74HC4020MTC MM74HC4020N MM74HC4040

📥 Download Datasheet

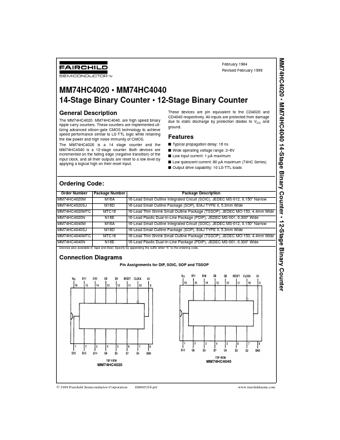

Preview of MM74HC4020 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MM74HC4020
Manufacturer
Fairchild
File Size
98.55 KB
Datasheet
MM74HC4020_FairchildSemiconductor.pdf
Description
14-Stage Binary Counter 12-Stage Binary Counter
