MM74HC4052 Datasheet - Fairchild

Dual 4-Channel Analog Multiplexer

MM74HC4052 Features

* s Wide analog input voltage range: ±6V s Low “on” resistance: 50 typ. (VCC

* VEE = 4.5V) 30 typ. (VCC

* VEE = 9V) s Logic level translation to enable 5V logic with ±5V analog signals s Low quiescent current: 80 µA maximum (74HC) s Matched Switch characteristic Ordering Code: Order Numbe

MM74HC4052 General Description

The MM74HC4051, MM74HC4052 and MM74HC4053 multiplexers are digitally controlled analog switches implemented in advanced silicon-gate CMOS technology. These switches have low “on” resistance and low “off” leakages. They are bidirectional switches, thus any analog input may be used as an output and vi.

MM74HC4052 Datasheet (120.88 KB)

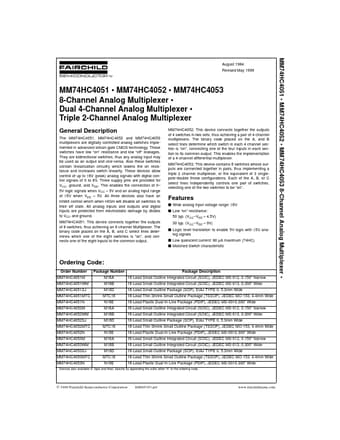

Preview of MM74HC4052 PDF

Datasheet Details

Part number:

MM74HC4052

Manufacturer:

Fairchild

File Size:

120.88 KB

Description:

Dual 4-channel analog multiplexer.
MM74HC4051 MM74HC4052 MM74HC4053 8-Channel Analog Multiplexer August 1984 Revised May 1999 MM74HC4051 MM74HC.
