MM74HC4049 - Hex Inverting Logic Level Down Converter

Fairchild

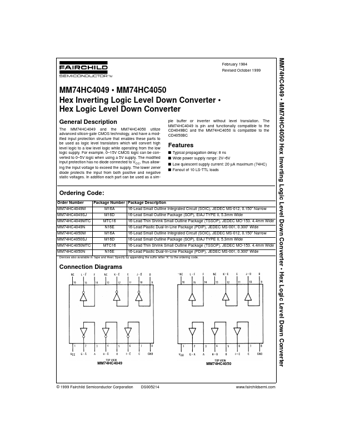

MM74HC4049 Datasheet Preview — Preview of MM74HC4049 PDF

Datasheet Details

Part number	MM74HC4049
Manufacturer	Fairchild ↗
File Size	69.54 KB
Description	Hex Inverting Logic Level Down Converter
Datasheet	MM74HC4049_FairchildSemiconductor.pdf

MM74HC4049 Product details

Description

The MM74HC4049 and the MM74HC4050 utilize advanced silicon-gate CMOS technology, and have a modified input protection structure that enables these parts to be used as logic level translators which will convert high level logic to a low level logic while operating from the low logic supply. 15V CMOS logic can be converted to 0 5V logic when using a 5V supply.

Features

s Typical propagation delay: 8 ns s Wide power supply range: 2V.
6V s Low quiescent supply current: 20 µA maximum (74HC) s Fanout of 10 LS-TTL loads Ordering Code: Order Number MM74HC4049M MM74HC4049SJ MM74HC4049MTC MM74HC4049N MM74HC4050M MM74HC4050SJ MM74HC4050MTC MM74HC4050N Package Number Package.
