NM25C020

2K-Bit Serial CMOS EEPROM (Serial Peripheral Interface (SPI) Synchronous Bus)

NM25C020 Features

* s 2.1 MHz clock rate @ 2.7V to 5.5V s 2048 bits organized as 256 x 8 s Multiple chips on the same 3-wire bus with separate chip select lines s Self-timed programming cycle s Simultaneous programming of 1 to 4 bytes at a time s Status register can be polled during programming to monitor READY/BUSY s

NM25C020 General Description

The NM25C020 is a 2048-bit CMOS EEPROM with an SPI compatible serial interface. The NM25C020 is designed for data storage in applications requiring both non-volatile memory and insystem data updates. This EEPROM is well suited for applications using the 68HC11 series of microcontrollers that support.

NM25C020 Datasheet (108.04 KB)

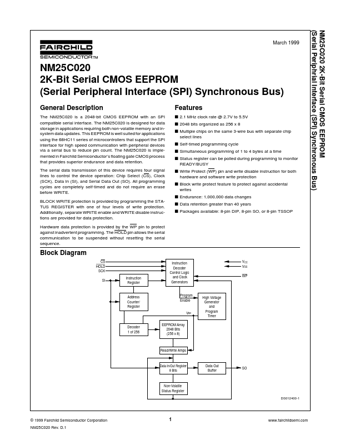

Preview of NM25C020 PDF

Datasheet Details

Part number:

NM25C020

Manufacturer:

Fairchild

File Size:

108.04 KB

Description:

2k-bit serial cmos eeprom (serial peripheral interface (spi) synchronous bus).
NM25C020 2K-Bit Serial CMOS EEPROM (Serial Periphrial Interface (SPI) Synchronous Bus) March 1999 NM25C020 2K-Bit Serial CMOS EEPROM (Serial Periphe.
