FMHR0201 Datasheet, Assemblies, Fairview Microwave

FMHR0201 Features

  • Assemblies
  • Max Frequency 18 GHz
  • 82.5% Phase Velocity
  • Triple Shielded
  • FEP Jacket
  • Temperature Pre-Conditioned Cable
  • J-STD Soldering

PDF File Details

Part number:

FMHR0201

Manufacturer:

Fairview Microwave

File Size:

675.58kb

Download:

📄 Datasheet

Description:

Temperature conditioned sma to n cable assemblies. Min Typ Max Units . Frequency Range DC 18 GHz VSWR 1.4:1 Velocity of Propagation 82.5 % Capacitance

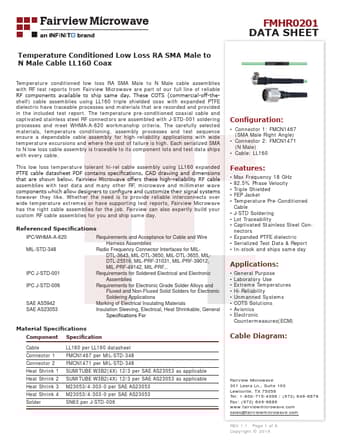

Datasheet Preview: FMHR0201 📥 Download PDF (675.58kb)
Page 2 of FMHR0201 Page 3 of FMHR0201

FMHR0201 Application

  • Applications with wide temperature excursions and where the cost of failure is high. Each serialized SMA to N low loss cable assembly is traceable t
