FMHR0202 Temperature Conditioned SMA to N Cable Assemblies

Min Typ Max Units . Frequency Range DC 18 GHz VSWR 1.42:1 Velocity of Propagation 82.5 % Capacitance 25 [82.02] pF/ft [pF/m] Dielectric Withstanding Voltage (AC) 1,000 Vrms Specifications by Frequency Description F1 F2 F3 F4 F5 Units.

FMHR0202 DATA SHEET Temperature Conditioned Low Loss RA SMA Male to N Female Bulkhead Cable LL160 Coax Temperature conditioned low loss RA SMA Male to N Female Bulkhead cable assemblies with RF test reports from Fairview Microwave are part of our full line of reliable RF components available to ship same day. These COTS (commercial-offthe-shelf) cable assemblies using LL160 triple shielded coax with expanded PTFE dielectric have traceable processes and materials that are recorded and provided .

FMHR0202 Features

* Max Frequency 18 GHz

* 82.5% Phase Velocity

* Triple Shielded

* FEP Jacket

* Temperature Pre-Conditioned Cable

* J-STD Soldering

* Lot Traceability

* Captivated Stainless Steel Con- nectors

* Expanded PTFE dielectric

FMHR0202-FairviewMicrowave.pdf

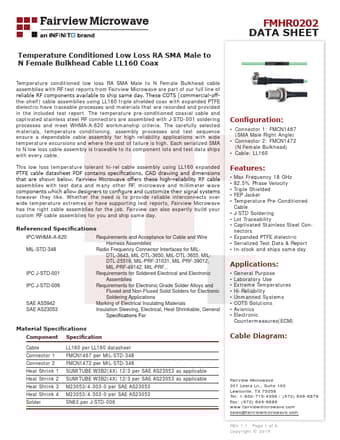

FMHR0202 Datasheet Preview — Preview of FMHR0202 PDF

Datasheet Details

Part number:

FMHR0202

Manufacturer:

Fairview Microwave

File Size:

685.96 KB

Description:

Temperature conditioned sma to n cable assemblies.
