FMHR0234 Temperature Conditioned TNC to SMA Cable Assemblies

Min Typ Max Units . Frequency Range DC 18 GHz VSWR 1.44:1 Velocity of Propagation 83 % Capacitance 25 [82.02] pF/ft [pF/m] Specifications by Frequency Description F1 F2 F3 F4 F5 Units . Frequency 1 2 4.5 9 18 GHz Insertion Loss (Max.).

FMHR0234 DATA SHEET Temperature Conditioned Low Loss RA SMA Male to RA TNC Male Cable LL335i Coax Temperature conditioned low loss RA SMA Male to RA TNC Male cable assemblies with RF test reports from Fairview Microwave are part of our full line of reliable RF components available to ship same day. These COTS (commercial-off-theshelf) cable assemblies using LL335i triple shielded coax with expanded PTFE dielectric have traceable processes and materials that are recorded and provided in the inc.

FMHR0234 Features

* Max Frequency 18 GHz

* 83% Phase Velocity

* Triple Shielded

* FEP Jacket

* Temperature Pre-Conditioned Cable

* J-STD Soldering

* Lot Traceability

* Captivated Stainless Steel Con- nectors

* Expanded PTFE dielectric

FMHR0234-FairviewMicrowave.pdf

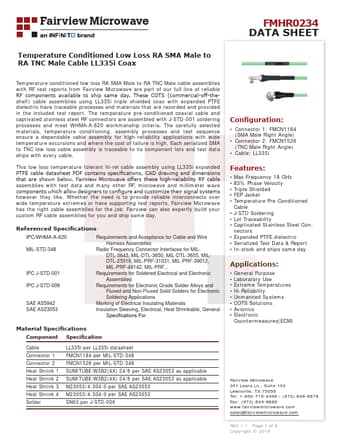

FMHR0234 Datasheet Preview — Preview of FMHR0234 PDF

Datasheet Details

Part number:

FMHR0234

Manufacturer:

Fairview Microwave

File Size:

683.69 KB

Description:

Temperature conditioned tnc to sma cable assemblies.
