FP6102 Datasheet - Feeling Technology

3A Buck Switching Regulator

FP6102 Features

* Precision Feedback Reference Voltage: 0.5V (2%) Wide Supply Voltage Operating Range: 3.6 to 20V Low Current Consumption: 3mA Internal Fixed Oscillator Frequency: 340KHz (Typ.) Internal Soft-Start Function (SS) Short Circuit Shutdown and Auto Re-s

FP6102 General Description

The FP6102 is a buck switching regulator for wide operating voltage application fields. The FP6102 includes a high current P-MOSFET, high precision reference (0.5V) for comparing output voltage with a feedback amplifier, an internal dead-time controller and oscillator for controlling the maximum dut.

FP6102 Datasheet (430.38 KB)

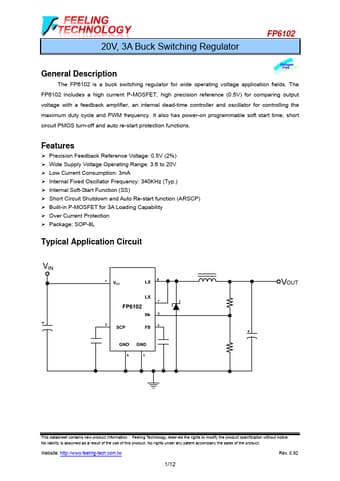

FP6102 Datasheet Preview — Preview of FP6102 PDF

Datasheet Details

Part number:

FP6102

Manufacturer:

Feeling Technology

File Size:

430.38 KB

Description:

3a buck switching regulator.
