FP6116 Datasheet - Feeling Technology

Asynchronous Step-Down Regulator

FP6116 Features

* Precision Feedback Reference Voltage: 0.8V (2%) Wide Supply Voltage Operating Range: 3.6 to 23V Low Current Consumption: 3mA Internal Fixed Oscillator Frequency: 340KHz (Typ.) Internal Soft-Start Function (SS) Built-In P-MOSFET for 3A Output Loading Ov

FP6116 General Description

The FP6116 is a buck switching regulator for wide operating voltage application fields. The FP6116 includes a high current P-MOSFET, a high precision reference (0.8V) for comparing output voltage with a feedback amplifier, an internal soft start timer and dead-time controller. The oscillator is for .

FP6116 Datasheet (508.35 KB)

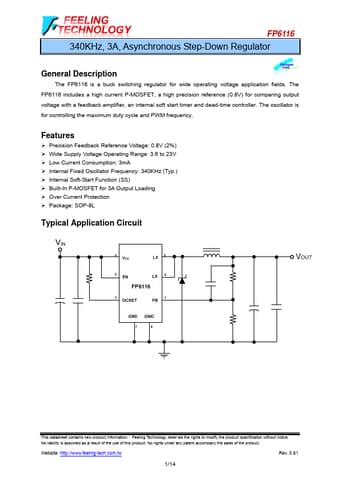

FP6116 Datasheet Preview — Preview of FP6116 PDF

Datasheet Details

Part number:

FP6116

Manufacturer:

Feeling Technology

File Size:

508.35 KB

Description:

Asynchronous step-down regulator.
