FP6128 Datasheet - Fiti

Dual Output Low-Dropout Regulator

FP6128 Features

* Low Dropout Voltage: 300mV at IOUT=200mA Guaranteed 300mA Output Current Per Channel Very Low Quiescent Current: 25µA High Power Supply Rejection Ratio: 70dB at 10kHz Highly Accurate: 2% Needs Only 1µF Ceramic Capacitor for Stability Thermal Shutdown and Current Limiting Protection Output Discharge

FP6128 General Description

NAME SOT23-6 TDFN6 DESCRIPTION EN2 3 1 Logic input control VOUT2 active or shut off VIN 2 2 Power in EN1 1 3 Logic input control VOUT1 active or shut off GND 5 4 Common ground VOUT1 6 5 The output supplies power to load VOUT2 4 6 The output supplies power to load TYPICAL APPLICAT.

FP6128 Datasheet (120.79 KB)

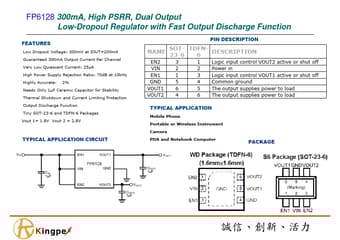

Preview of FP6128 PDF

Datasheet Details

Part number:

FP6128

Manufacturer:

Fiti

File Size:

120.79 KB

Description:

Dual output low-dropout regulator.
